Laser Not Cutting Through? 8 Causes and Fixes (Any Brand)

When a diode or CO2 laser leaves the back of the material uncut: focus, material thickness setting, power and speed, passes, a dirty lens, air assist, the material itself and an overheated laser, from xTool and Glowforge guidance.

By Published 3 min read

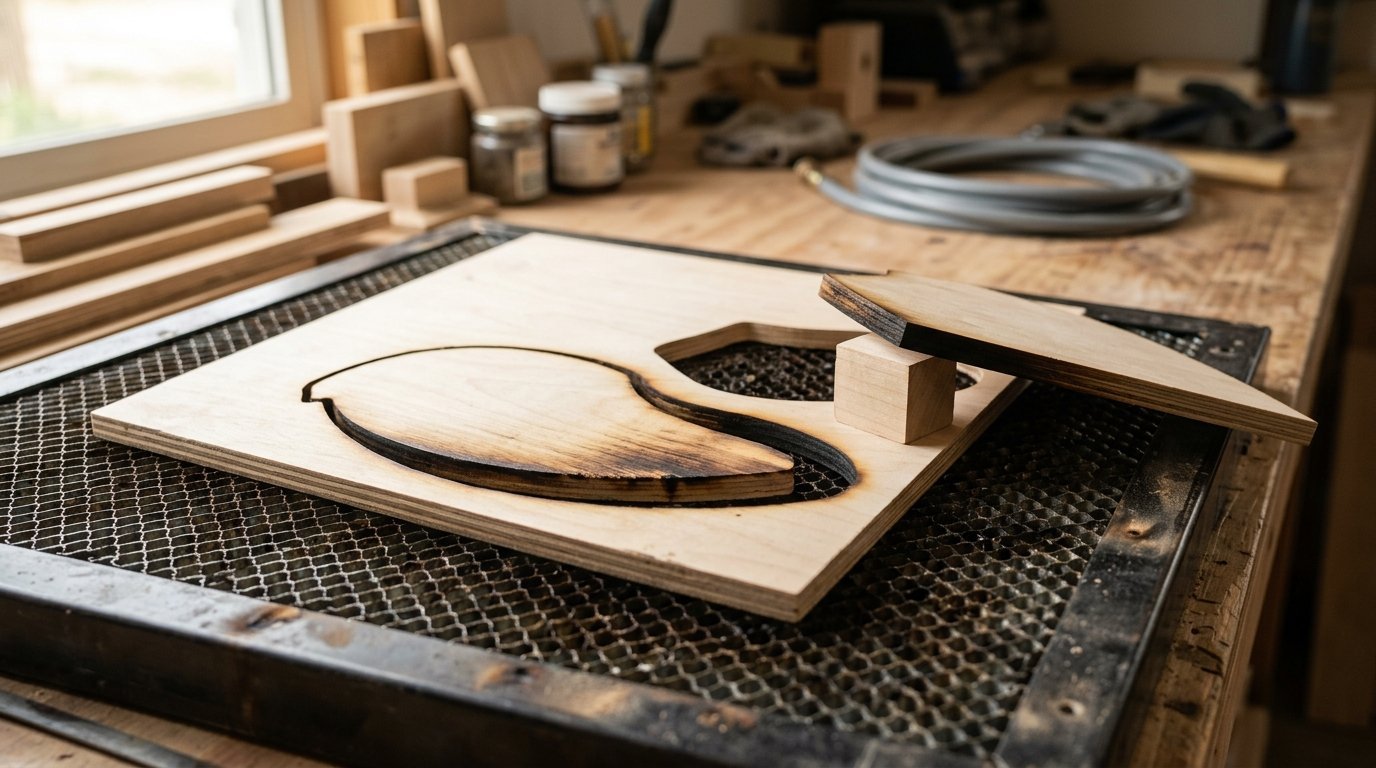

AI-generated photo-style image of a plywood sheet with a laser cut that has not gone all the way through
AI-generated image

Quick fix

Check focus first (the thickness you entered or the autofocus result), then clean the lens. Slow down before adding power, use air assist, and split thick material into more passes. Remember the limits: blue diodes can't cut clear or light-coloured acrylic, and every machine has a maximum depth. If cutting suddenly weakened, let the laser cool and check the lens or nozzle.

A cut that marks the back but doesn't separate the part almost always comes down to energy reaching the material: focus, settings, a dirty lens or the material itself. Work through these in order. They draw on xTool's and Glowforge's support guidance (checked October 18, 2026) and apply to most diode and CO2 lasers.

Quick fix

  1. Re-run autofocus, or re-measure and re-enter the material thickness.
  2. Clean the lens.
  3. Lower the speed (before raising power) and turn on air assist.
  4. Add passes for thick material.

1. Focus or thickness setting

Lasers cut best with the focal point in the right place. Some machines focus from the thickness you enter: xTool's F1 Ultra guide says to nudge the focus up or down, or enter half or double the material thickness in the software, if cuts fail. Measure thick material with calipers rather than trusting the label.

2. Dirty or damaged lens

Smoke residue on the lens absorbs power. xTool says to check for dust or dirt on the lens and gently wipe it with a cotton swab and a little alcohol; if it's damaged or badly oxidised, replace it. A LightBurn forum user traced a sudden loss of cutting to a dirty lens found after removing the air assist nozzle.

3. Speed and power

xTool advises checking that power is appropriate and trying a slower speed first. Run a material test grid (most brand software and LightBurn can make one) to find the slowest clean setting for each material.

4. Passes

Thick wood often cuts better in two or three passes than one very slow pass, which can char and flare. Some users lower the focus between passes on thick stock.

5. Air assist

Air assist blows smoke and debris out of the cut and keeps smoke off the lens. Without it, cuts are shallower and edges scorch. Make sure it's switched on and the nozzle isn't blocked.

6. The material

  • Blue diode lasers can't cut clear or light acrylic; the beam passes through. Use a CO2 laser.
  • Plywood glue and knots block cuts in patches; try laser-grade plywood.
  • Resinous or wet wood cuts unevenly.
  • Stay within your machine's limit: Glowforge rates the Aura for material up to 1/4 in, for example. Check the maker's maximum cutting depth.

7. Overheating

xTool notes continuous high-power operation can temporarily reduce a diode laser's power, recovering once it cools. Give the laser breaks on long jobs and keep vents clear.

8. CO2 lasers: alignment and the tube

If a CO2 laser cuts well in one corner but not another, the mirrors may be misaligned. Gradual weakening over months can mean an ageing tube; OMTech, for example, lists an estimated tube life in hours. Follow your maker's alignment guide.

Still not working?

If the fixes above don’t help and your laser is out of warranty, a repair can cost more than a replacement. Compare current models before you pay for parts.

See the best laser engravers or find the right replacement for your sky.

Frequently asked questions

Why won't my diode laser cut clear acrylic?
Blue diode light passes through clear and many light-coloured acrylics instead of being absorbed, so it can't cut them. Glowforge, for example, says its 6W diode Aura isn't compatible with clear, white or blue acrylic. Use a CO2 laser for clear acrylic.

Should I add power or reduce speed?
xTool suggests checking that the power is appropriate and trying a slower speed first. Slower speed puts more energy into each spot. On thick material, more passes at moderate speed often cut cleaner than one very slow pass.

Why did my laser suddenly stop cutting as well as before?
The usual causes are a dirty lens, a shifted focus (for example after changing the nozzle or air assist) or a hot laser. xTool notes continuous high-power use can temporarily reduce a diode's power until it cools. On CO2 lasers, also check mirror alignment and the tube's age.
